Looking For Seamless

Broadband Failover?

Relax, we've got you covered!

Seamless Failover Router
Consistant Public IP
Cloud-Managed Router

Welcome to Assure X App

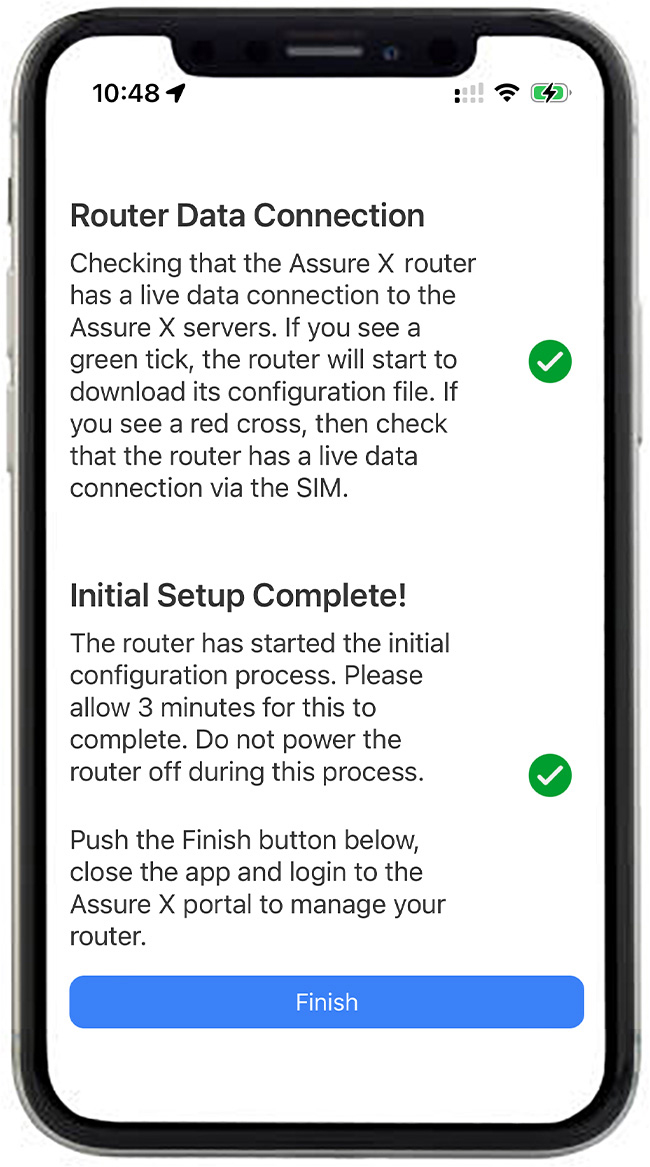

Assure X Setup App

The initial-setup of the Assure X hybrid router takes a matter of minutes with the IOS and Android Assure X app

Simple Steps:

Simply connect your mobile device to the routers WiFi
Enter the Admin Password that is specified on the the routers label
That's it! The router connects to the Assure X Servers and downloads it settings

Assure X Portal:

All other settings such as LAN, WiFi details and general management are administered through the dedicated Assure X Cloud Management Portal

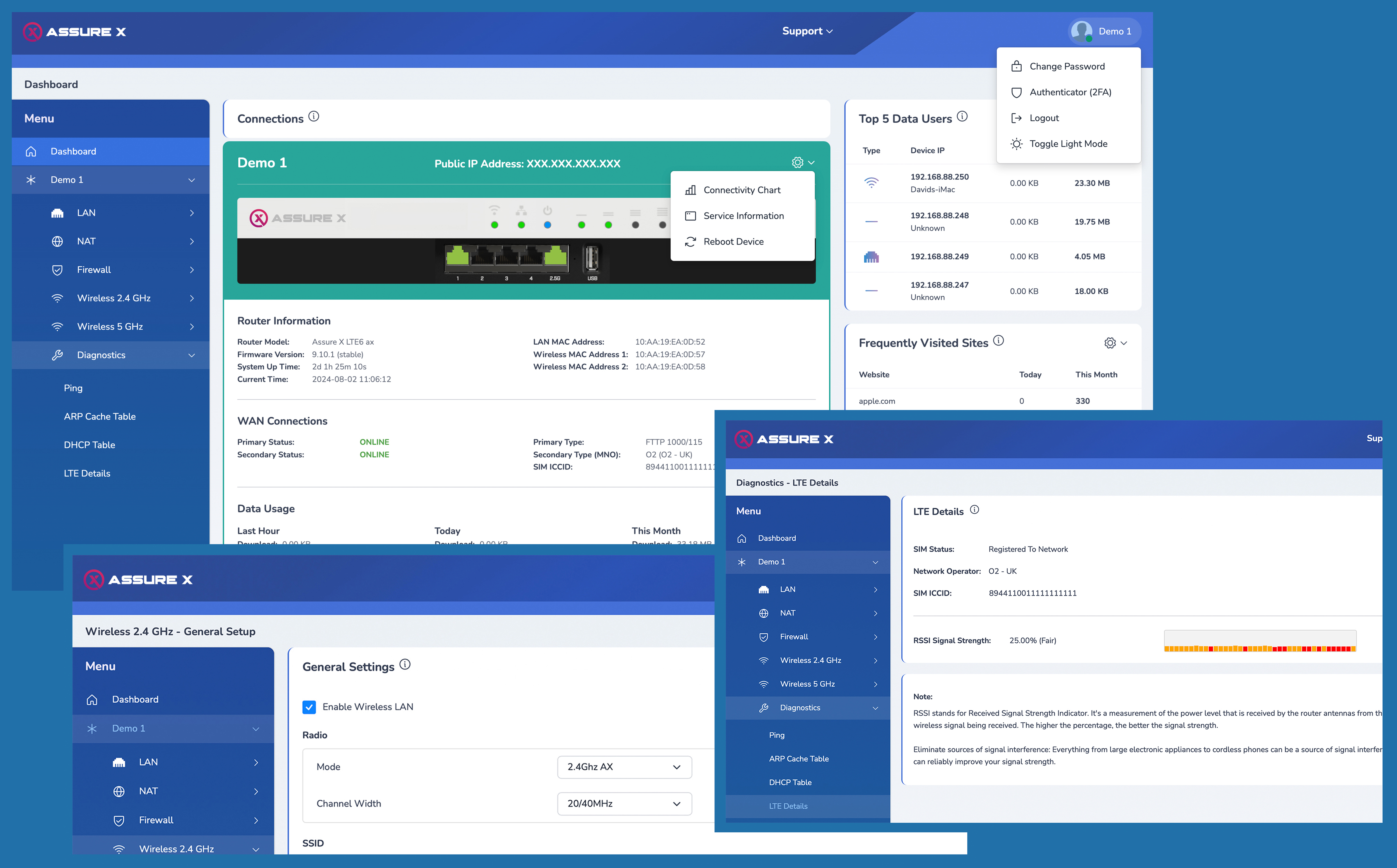

Assure X Management Portal

Portal Features

24/7 Central Router Management
Check WAN Connection Status
Manage Port forwarding
Configure Wireless Settings
Fixed Connection Diagnostic Tools
Cellular Network Diagnostic Tools
Secure 2FA Security Access
Real-time Device Usage Details

Questions and Answers

How does the Assure X hybid router work?

The hybid router has a Primary fixed connection and a Secondary cellular data connection. In the event that the Primary connection fails, the Secondary connection takes over. This failover is instant and seamless. Even if you was on an IP phone-call, the call would not drop. The Assure X router has its own operating system which integrates with the Assure X cloud platform. This integration is key to making Assure X a totally unique proposition in the market place.

Can I use my own router and broadband/leased line?

No, the router has gigabit LAN and WAN ports and is WiFi 6 enabled. The router has an operating system built in which integrates with the Assure X platform. Assure X is a complete platform that allows seamless failover, retains the same public IP address and is cloud managed via a purpose-built portal. To provide the Assure X service, we need full control over the router and both the primary and secondary cellular connections.

Will my public IP remain the same in the event of a failover?

Yes, the included static public IP address will remain consistant, as it's the same on the Primary and Secondary connection.

Is the router easy to set up?

The router is set up via our Assure X app in a few simple steps. This process take a few minutes to complete. Once complete, all other configuration is managed in the Assure X cloud portal. Accessing your routers remotely via the cloud saves time, effort and costs.

What other features does Assure X offer?

Apart from seamless failover, a public IP address that never changes and full cloud management, you can also drill down by device IP address, how much data your devices are using. You can also see which websites are being visited by the device IP address.

Is there a seperate charge for the SIM rental and data costs?

The data SIM is included in the fixed Primary connection monthly subscription. There are no data costs to worry about either in the event of a Primary connection failure.

What is the specification of the Assure X router?

The Assure X LTE6 ax is a 4G WiFi-6 router that has 1 x 2.5 Gigabit and 4 x Gigabit ports. The full specification is listed here.

The Assure X 5G ax is a 5G WiFi-6 router that has 1 x 2.5 Gigabit and 4 x Gigabit ports. The full specification is listed here.

Contact us for more
information or a free demonstration

Specifications

Details
Product code	S53UG+5HaxD2HaxD-TC&FG621-EA
Architecture	ARM 64bit
CPU	IPQ-6010
CPU core count	4
CPU nominal frequency	auto MHz
Switch chip model	IPQ-6010
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$199.00

Wireless Capabilities

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCN-5022
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	QCN-5052
Wireless 5 GHz generation	Wi-Fi 6
WiFi speed	AX1800

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC	86335904

Ethernet

Details
10/100/1000 Ethernet ports	4
Number of 2.5G Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	17 W
Max power consumption without attachments	13 W
Cooling type	Passive

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	-	-100
11MBit/s	-	-94
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

Specifications

Details
Product code	S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
Architecture	ARM 64bit
CPU	IPQ-6010
CPU core count	4
CPU nominal frequency	auto (864-1800) MHz
Switch chip model	IPQ-6010
Dimensions	240 x 156 x 44 mm
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25°C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$595.00

Wireless Capabilities

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	QCN-5022
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	6
Wireless 5 GHz chip model	QCN-5052
Wireless 5 GHz generation	Wi-Fi 6

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) / 19 (800 MHz)
LTE Category	20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 1 (2100MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	34 (2000 MHz) / 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
5G NSA FDD bands	1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G NSA TDD bands	38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz)
5G SA FDD bands	1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G SA TDD bands	38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz)
TAC	86073604

Ethernet

Details
10/100/1000 Ethernet ports	4
Number of 2.5G Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of M.2 slots	1

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	19 W
Max power consumption without attachments	16 W
Cooling type	Passive

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	23	-100
11MBit/s	23	-94
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67
